Featuring highly efficient load handling with its top class lift speed and low fuel consumption, the QuaPro engine forklift is your equipment of choice when power and speed are top priorities.

• Class-leading output performance from powerful engine choices
• Globally-proven robust transmission and drive axle for heavy duty applications
• Standard enhanced safety features including traction and hydraulic Interlock

INQUIRE NOW!

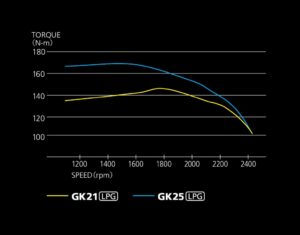

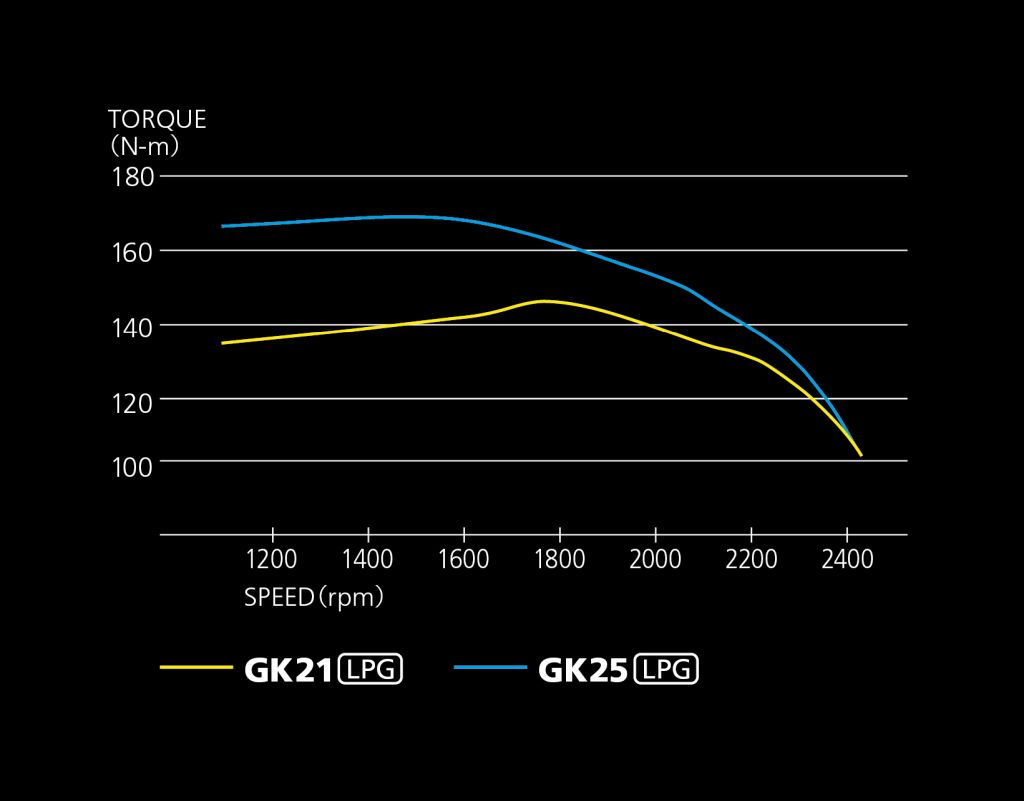

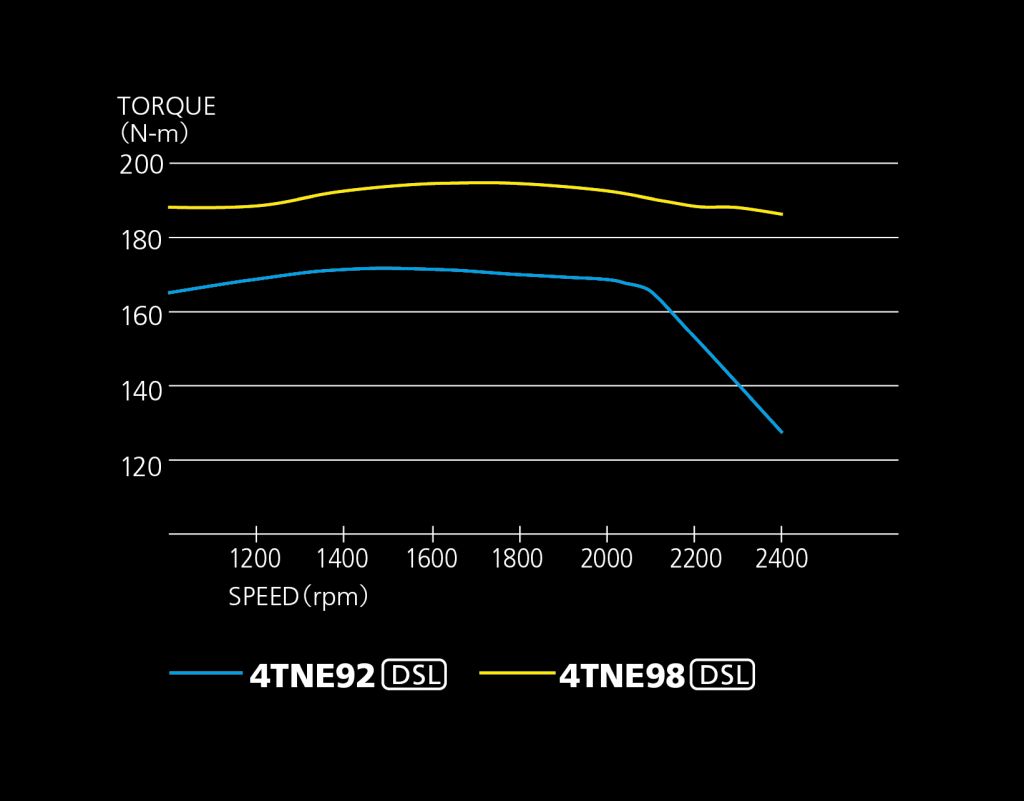

ENGINE OPTIMIZATION

ENGINE OPTIMIZATION

Engine settings have been optimized to maintain powerful, smooth acceleration capabilities while achieving high fuel efficiency and providing superb performance even in harsh real-world usage environments.

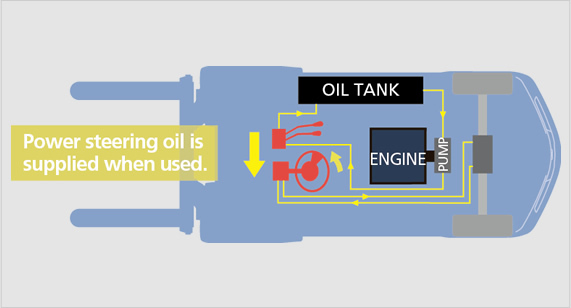

LSS (LOAD SENSING STEERING SYSTEM)

LSS (LOAD SENSING STEERING SYSTEM)

LSS adjusts power steering fluid flow rate actively, corresponding to steering operation, to further improve fuel economy.

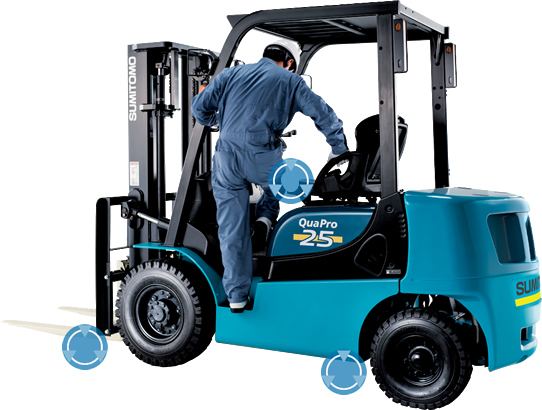

SAFETY TRAVELING INTERLOCK

SAFETY TRAVELING INTERLOCK

The traveling interlock device automatically shuts off the engine when the operator leaves the seat. This helps prevent human error e.g. the operator accidentally stepping on the accelerator.

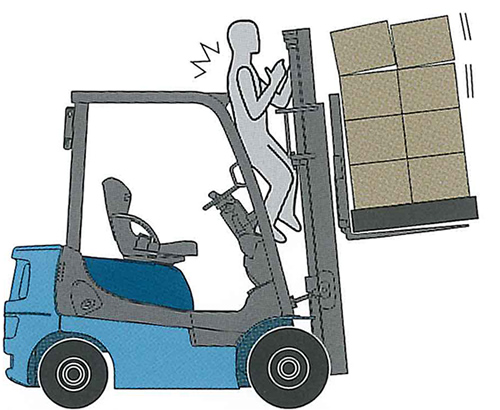

SAFETY LOAD HANDLING INTERLOCK

SAFETY LOAD HANDLING INTERLOCK

The load handling interlock device prevents errors from happening when the operator is not in the correct operating position by killing the loading lever function.

Featuring both compact and standard body types, the long operable time and long-life batteries of the QuaPro-B delivers maximum productivity while being energy-efficient and environmentally-friendly.

• Class-leading operable time class ensures job completion even during days of heavy workload
• Newly equipped with STC (Safety Turn Control) System
• Semi High Mount Trail lessens the vehicle’s rocking motion for stable loading
• Drop battery box concept to lower center of gravity and achieve better balance
• Standard warning system for dangerous operation

INQUIRE NOW!

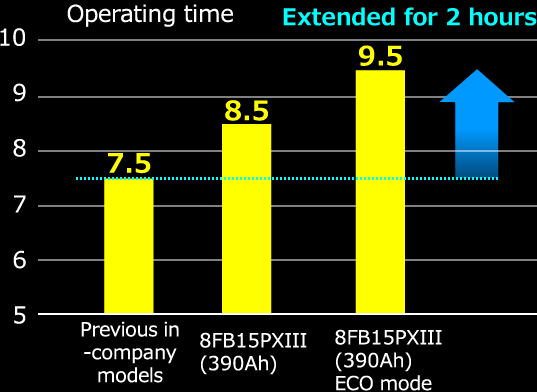

LONGER OPERABLE TIME, LONG LIFE BATTERIES

LONGER OPERABLE TIME, LONG LIFE BATTERIES

With a combination of energy-saving technologies, energy-regeneration systems, and a user-selectable ECO mode, the new QuaPro-B is able to operate for 2 hours longer. Plus, the new batteries can achieve a lifespan of up to 7 years.

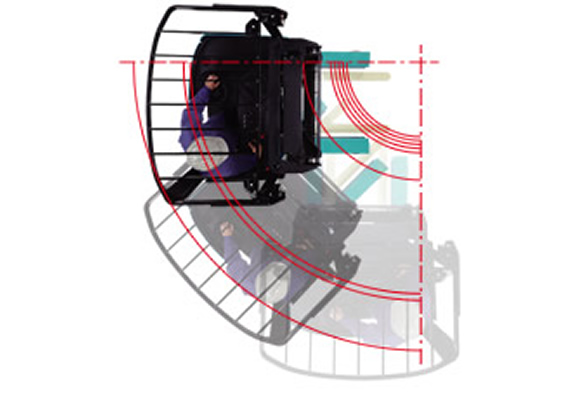

SAFETY STC (SAFETY TURN CONTROL) SYSTEM

SAFETY STC (SAFETY TURN CONTROL) SYSTEM

STC automatically controls the machine’s speed of turning and torque according to the angle of the tires. This minimizes
cargo swerve and maximizes workplace safety and efficiency.

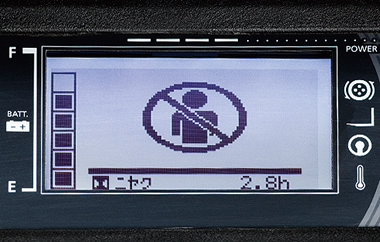

SAFETY TRAVELING INTERLOCK

SAFETY TRAVELING INTERLOCK

The traveling interlock device automatically shuts off the engine when the operator leaves the seat. This helps prevent human error e.g. the operator accidentally stepping on the accelerator.

SAFETY LOAD HANDLING INTERLOCK

SAFETY LOAD HANDLING INTERLOCK

The load handling interlock device prevents errors from happening when the operator is not in the correct operating position by killing the loading lever function.

Comfortable. Economical. Safe. These are the top features you can expect from the QuaPro-R range of reach trucks.

• Energy-saving features increase operation time
• Class-leading maneuverability with smaller turning radius and staying in position with Sumitomo’s patented AWC (Aisle Width Control) technology
• Smooth inching operation for both loading and unloading

INQUIRE NOW!

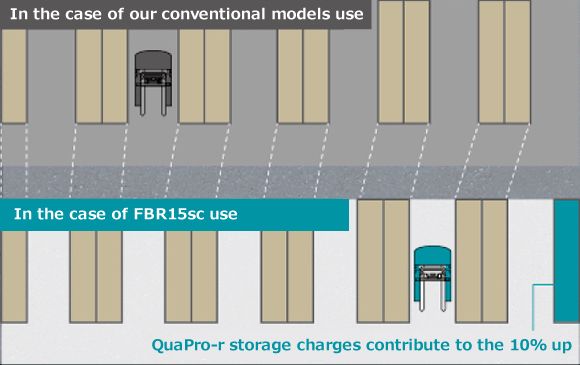

SPACE SAVING, STORAGE MAXIMIZATION

SPACE SAVING, STORAGE MAXIMIZATION

10% Increase in Storage Capacity

The reduction in right-angle stacking aisle width enables better utilization of storage space in a warehouse. This allows increasing the number of racks which increases volume of storage.

20% Fatigue Level Reduction

The reduction in right-angle stacking aisle width largely reduce the steering-turn operations by the operator. Unnecessary operations are minimized which results in reduction of operator fatigue levels.

ENERGY SAVING, LONGER OPERABLE TIME

ENERGY SAVING, LONGER OPERABLE TIME

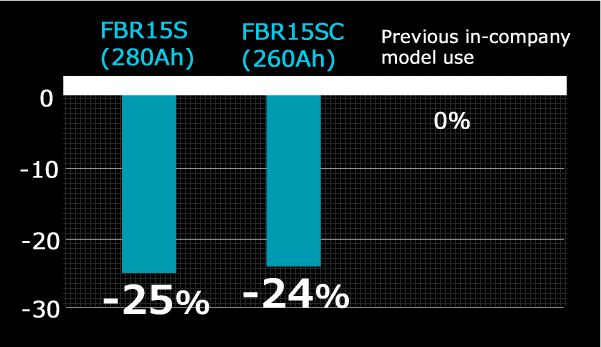

Reduction of power consumption

The new QuaPro-R is the first reach-type forklift model to use an IPM motor.
In addition, Sumitomo revised the AC motor for efficient load handling operations, reduced the vehicle weight, and optimized the layout of devices and controls.
This resulted in class-leading power consumption level (24% decrease vs. our previous models). Reductions in CO2 emissions (356 kg decrease/year), and prolonged operating hours (+approx. 2 h/day).

Low Cost of Ownership

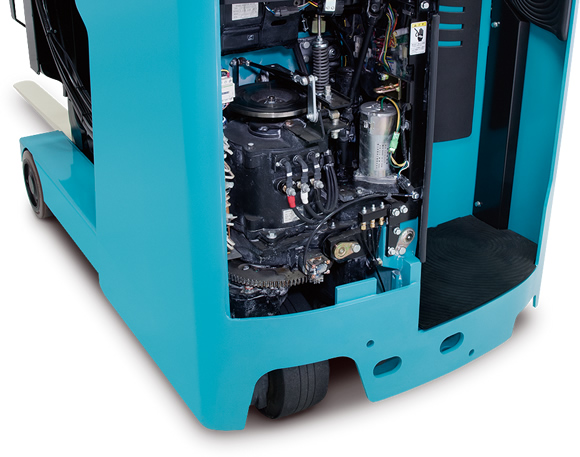

IPM motor
Compact and highly efficient IPM motor, also used
on electric automobiles, is adopted for the travel motor. The motor has high dust-proof performance which eliminates grease shortage malfunctions and contributes to reduction in maintenance costs.
AC motor
An AC motor is adopted for load handling, its high efficiency contributes
to energy conservation. Parts which wear out such as brushes and contactors are unnecessary thereby reducing maintenance cost.

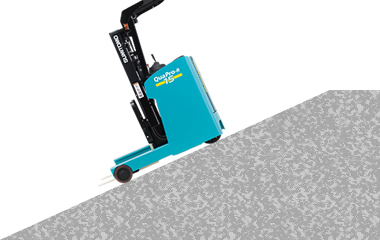

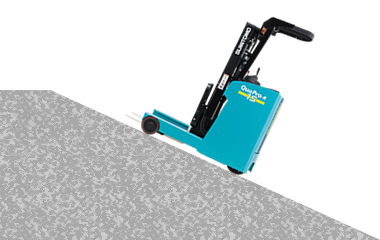

SAFETY SLOPE SPEED LIMITER

SAFETY SLOPE SPEED LIMITER

The QuaPro-R has various safety mechanisms and equipment to ensure the safety of operators during travel and load handling operations. In addition, to ensure safe operation in high, dark places, various options are available such as LED lights, carriage light, and a safety laser.

The slope speed limiter prevents unwanted acceleration on downslopes. The limiter maintains a constant speed when a downslope is detected.

SAFETY ANTI-ROLLBACK MECHANISM

SAFETY ANTI-ROLLBACK MECHANISM

The anti-rollback mechanism prevents the forklift from rolling backwards when positioned on an upslope.

SAFETY TURN SPEED CONTROL

SAFETY TURN SPEED CONTROL

Restricts dangerous acceleration during turns. This prevents hazardous situations such as a rollover.

SAFETY TRAVEL & LOAD HANDLING INTERLOCK

SAFETY TRAVEL & LOAD HANDLING INTERLOCK

Travel and load handling operations are locked while the operator is away. Also, operation from outside the forklift is locked even when the key is on.
